Violation Details Menu
This menu is available to both the Adjudicator and the Supervisor.
Note that the DVL option is only visible and available to VMS installations for which a Roster Server has been installed.
Details

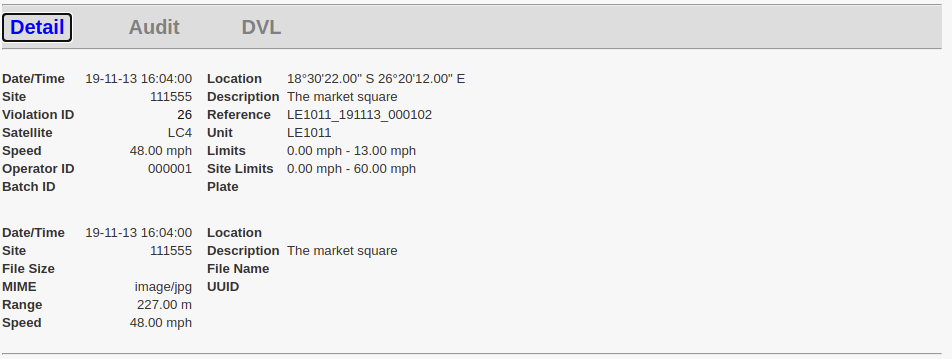

Violation Details
Date/Time |
The date and time that the violation was acquired |
Location |
Geographic Latitude and Longitude. Not always available |
Site |
Site Code |
Description |
Site description |
Violation ID |
Unique VMS assigned ID for this violation |
Reference |
Reference to the violation assigned by the acquisition equipment (camera) |
Satellite |
Type acquisition equipment. e.g !DCam, LaserCam4, etc |
Unit |
Usually the serial number of the acquisition equipment |
Speed |
The maximum recorded vehicle speed |
Limits |
Minimum and maximum speed limits as specified by the recording camera. Not always available. |
Operator ID |
Operator of the acquisition equipment (camera) |
Site Limits |
Speed Limits assigned to the Site Code |
Batch ID |
Export batch - if the violation has been exported |
Plate |
Vehicle registration number - if available |
Evidence Details
These details replace the ANPR Details when an item of evidence is selected for display in the Main Image.
Date/Time |
Recorded date & time |
Location |
Geographic Latitude and Longitude. Not always available. |
Site |
Recorded Site - may differ from the summary above |
Description |
Site description. |
File Size |
Size in bytes |
File Name |
Name of the file in which the evidence was saved on the LFR |
MIME |
Multipurpose Internet Mail Extensions. File type. |
UUID |
Universally Unique Identifier (UUID) - is the LFR's unique key of this file. |
Range |
Camera to vehicle range in meters |
|
|
Speed |
Vehicle Speed |
|
|
ANPR Details
These details replace the Evidence Details when an ANPR image is selected.
Date/Time |
Recorded date & time |
|
|
Plate |
Registration Number |
Location |
Geographic Latitude and Longitude. Not always available |
Delta Time |
Time difference between ANPR image and violation recording. |
Distance |
Distance to the vehicle (if available) |
Source |
Device responsible for the ANPR image 'Name[serialNo] |
UUID |
Universally Unique Identifier (UUID) - is the LFR's unique key of this file. |

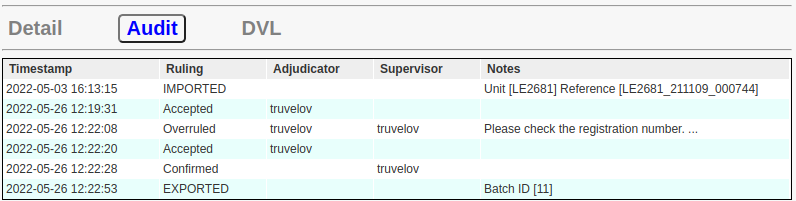

Audit
This table is a historical record of all the relevant events and rulings associated with this violation.
The columns denote the following ...
Timestamp: The date and time at which this ruling or event occurred.
Ruling: Records the Import, Export events and all Rulings applied to this violation.
Adjudicator: The username of the adjudicator responsible for the ruling.
Supervisor: The username of the supervisor responsible for confirming the ruling.
Notes: A summary of the event or ruling details. Notice that the 'Overruled' entry comment is followed by three ellipses (...) which indicates that this is a multi-line comment.
Note that whenever a violation is overruled, the Adjudicator column will contain the username of the Adjudicator to whom the violations were forwarded.
Clicking on an item with a 'Notes' entry will display the full details as illustrated below.
